Steering Arm Outer [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wheel, refer to: WHEELS

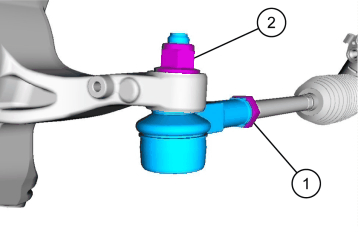

GLL155600Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the ball joint ball does not rotate.

  1. Torque:  Track rod end to track rod, 90Nm
  2. Torque:  Tie rod end to wheel knuckle, 80Nm

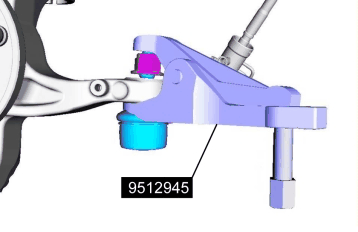

GLL155356Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2945

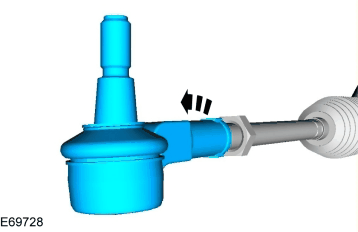

GLL155601Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the tie rod end is installed with the same number of turns as when removed.
