Power Steering Pump [2016, B5254T12]: Removal

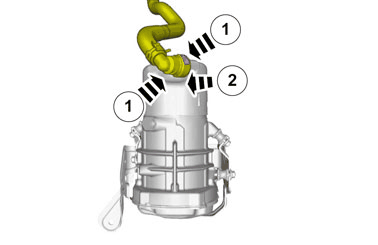

Drain reservoir fluid power steering.

Remove right front wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

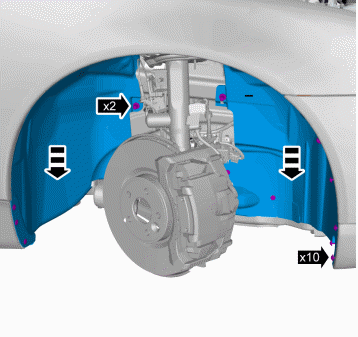

Remove right casing bumper front, refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

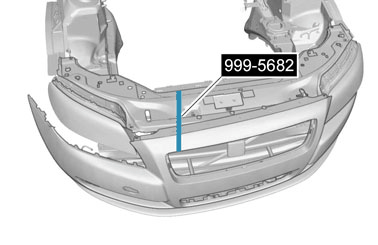

Special Tool: 999 5682

Courtesy of VOLVO CARS CORPORATION

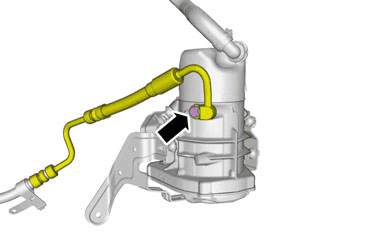

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

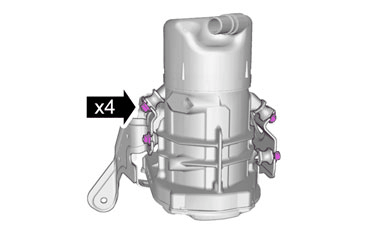

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
