Power Steering Delivery Pipe [2017, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove right front wheel, refer to: WHEELS

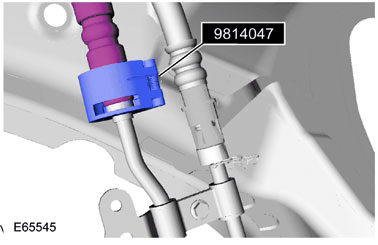

GLL171985Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that all openings are sealed.

Special Tool: 981 4047

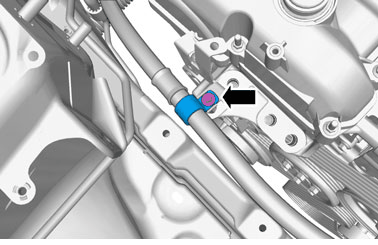

GLL171979Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

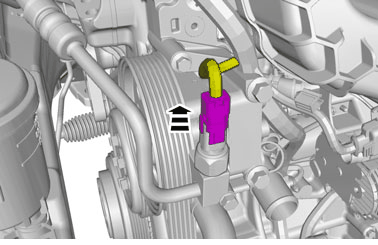

GLL171984Courtesy of VOLVO CARS CORPORATION

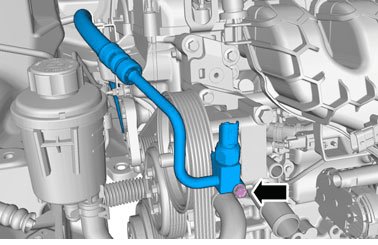

GLL171978Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

Torque:  M6, 10Nm
