Inner Side Link Ball Joint [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Loosen the nut.

Torque: Track rod end to track rod, 90Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the thread during installation.

NOTE:

Note the number of turns when removing the tie rod end.

Courtesy of VOLVO CARS CORPORATION

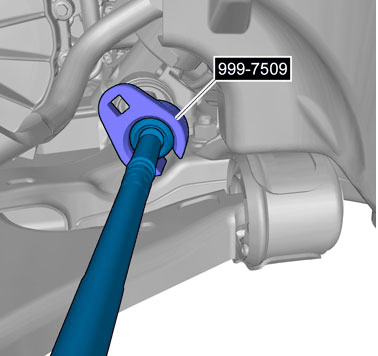

Remove the nut.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: Inner steering joint for steering gear, 100Nm
