Inner Side Link Ball Joint [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wheel, refer to: WHEELS

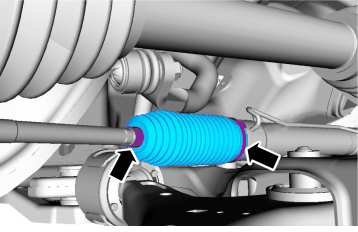

Courtesy of VOLVO CARS CORPORATION

Torque: Track rod end to track rod, 90Nm

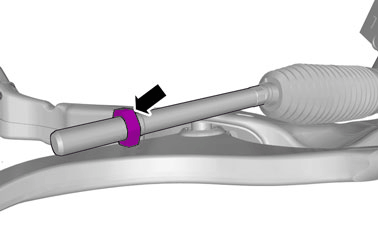

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the thread during installation.

NOTE:

Note the number of turns when removing the tie rod end.

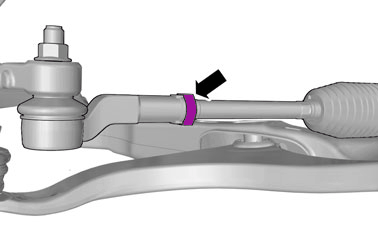

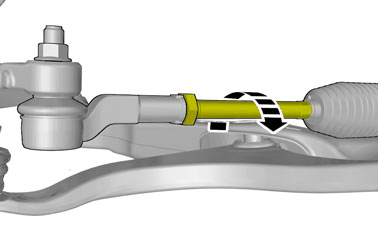

Courtesy of VOLVO CARS CORPORATION

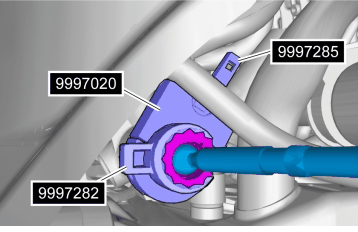

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: Inner steering joint for steering gear, 110Nm

VEHICLES WITH VARIABLE ASSIST POWER STEERING (VAPS)

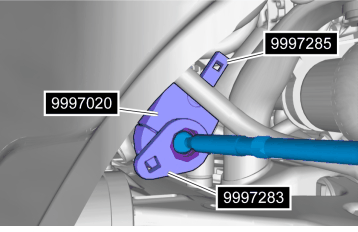

Courtesy of VOLVO CARS CORPORATION

Torque: Inner steering joint for steering gear, 110Nm

ALL VEHICLES
