Gear Shift Paddles [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Courtesy of VOLVO CARS CORPORATION

NOTE:

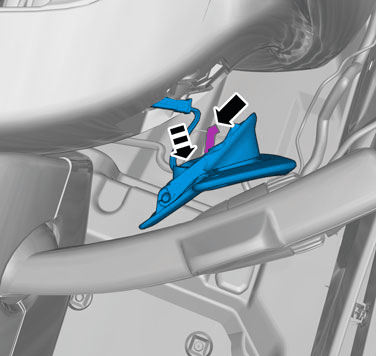

Orientation view

Remove keypad steering wheel, refer to: KEYPAD, STEERING WHEEL

Courtesy of VOLVO CARS CORPORATION

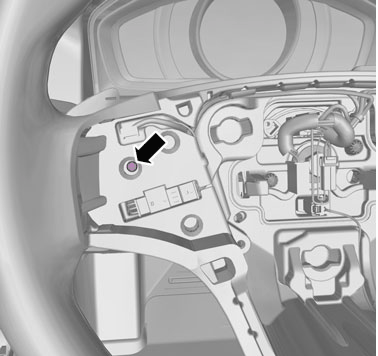

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

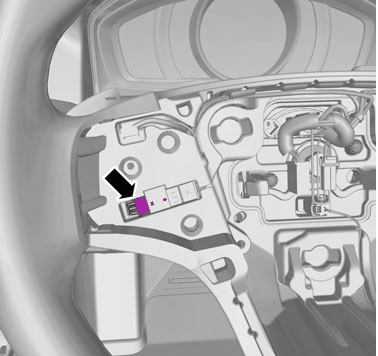

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION
