Removal And Installation

REMOVAL

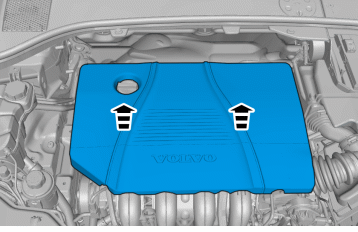

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

WARNING:

Power steering fluid is extremely flammable. Make sure that power steering fluid is not spilled over the engine and that the power steering fluid reservoir cap is sealed.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

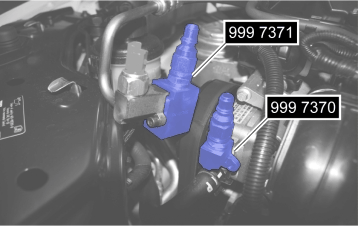

Special Tool: 999 7371 and Special Tool: 999 7370

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5055

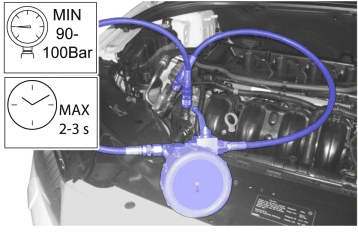

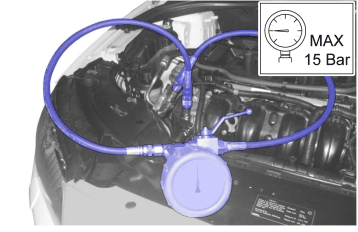

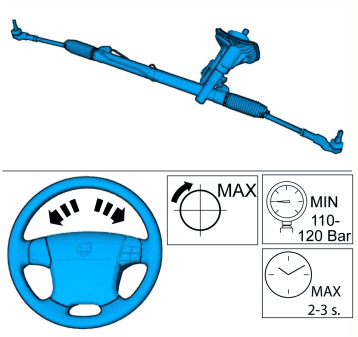

CHECK

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

REMOVAL

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

WARNING:

Power steering fluid is extremely flammable. Make sure that power steering fluid is not spilled over the engine and that the power steering fluid reservoir cap is sealed.

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To assemble, reverse the disassembly procedure.

Perform power steering system, bleeding air, refer to: POWER STEERING SYSTEM, BLEEDING
