Removal And Installation

REMOVAL

VEHICLES WITH ELECTRIC POWER STEERING PUMP

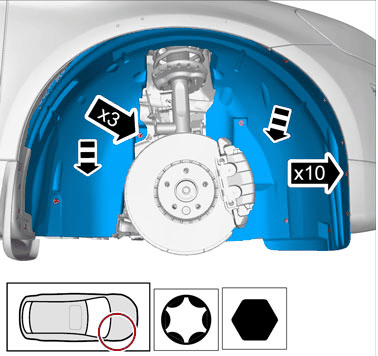

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

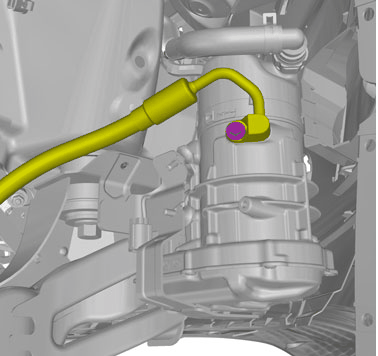

Torque: M8, 24Nm

CONNECTING

Courtesy of VOLVO CARS CORPORATION

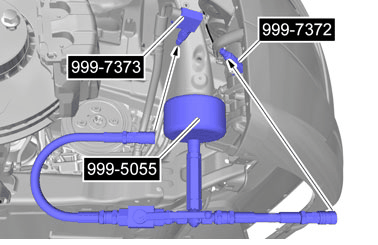

Special Tool: 999 7372 , Special Tool: 999 7373 and Special Tool: 999 5055

ACTIVATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

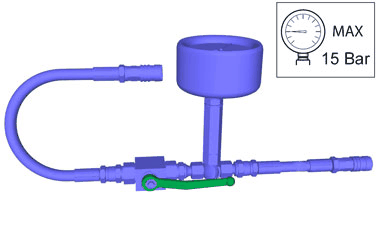

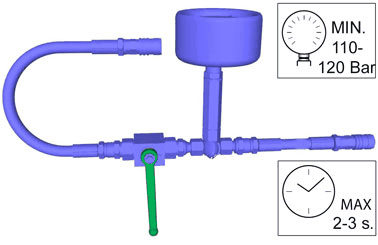

CHECK

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

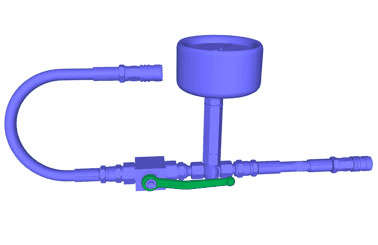

DISCONNECTING

WARNING:

Be prepared to collect escaping fluid.

INSTALLATION

To install, reverse the removal procedure.

Perform power steering system, bleeding air, refer to: POWER STEERING SYSTEM, BLEEDING

VEHICLES WITH MECHANICAL POWER STEERING PUMP

CHECK

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

WARNING:

Power steering fluid is extremely flammable. Make sure that power steering fluid is not spilled over the engine and that the power steering fluid reservoir cap is sealed.

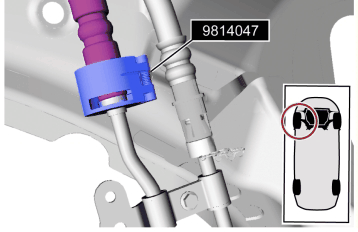

Special Tool: 981 4047

Courtesy of VOLVO CARS CORPORATION

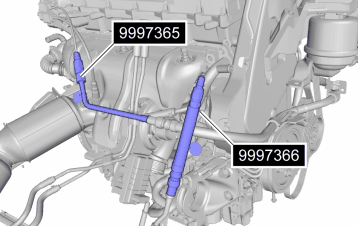

Special Tool: 999 7365 and Special Tool: 999 7366

Courtesy of VOLVO CARS CORPORATION

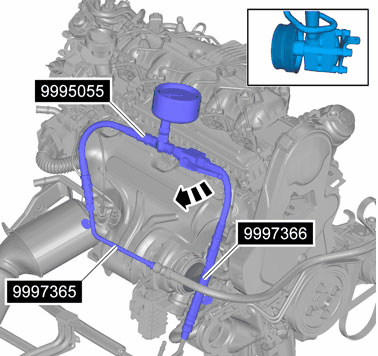

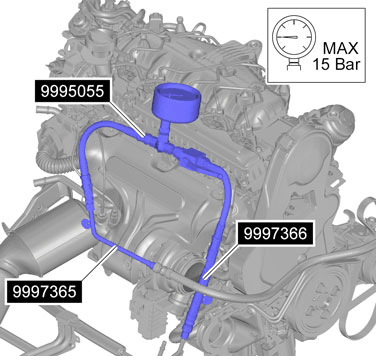

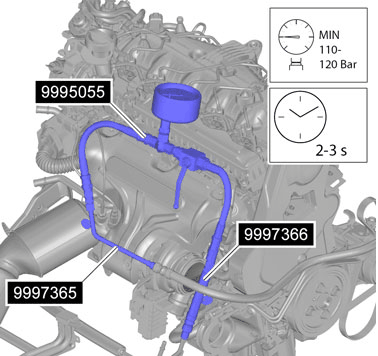

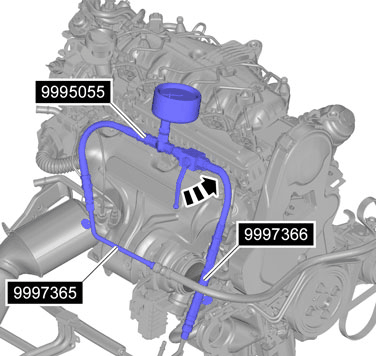

Special Tool: 999 5055 , Special Tool: 999 7365 and Special Tool: 999 7366

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Perform power steering system, bleeding air, refer to: POWER STEERING SYSTEM, BLEEDING
