Contact Reel, Adjusting [2016-2018]
NOTE:
For information on Volvo color coded illustrations, refer to: IMAGES
Remove steering wheel, refer to: STEERING WHEEL
NOTE:
Make sure that the road wheels are in the straight ahead position.
WARNING:

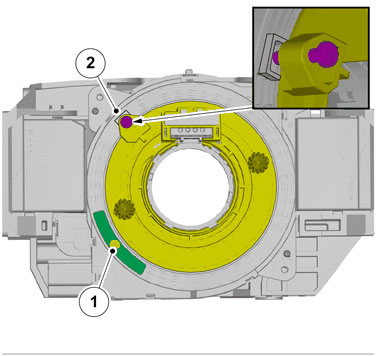

Make sure that the color marking is visible in the window.
Perform supplemental restraint system (SRS), post check, refer to: SUPPLEMENTARY RESTRAINT SYSTEM
