Seat Belt Height Adjuster [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the B-pillar trim panel, refer to: B-PILLAR TRIM PANEL

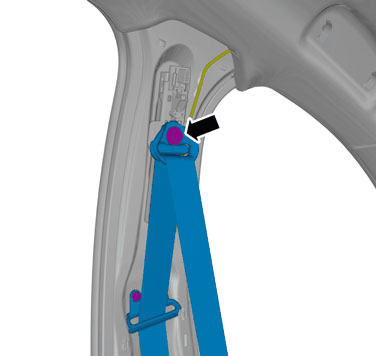

GLL1031243Courtesy of VOLVO CARS CORPORATION

Torque:  Safety belt retractor front to body, 40Nm

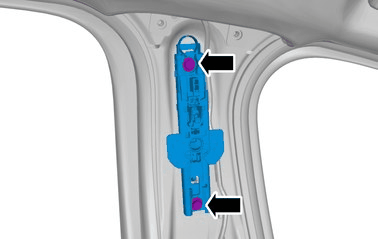

GLL1006465Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm
