Safety Belt Buckle, Rear [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the seat cushion, rear seat, refer to: SEAT CUSHION, REAR SEAT

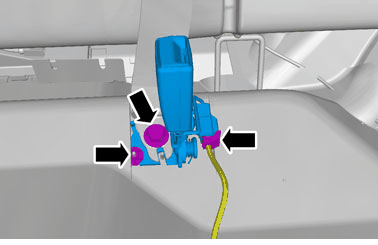

GLL173962Courtesy of VOLVO CARS CORPORATION

Torque:  Buckle safety belt to body, 40Nm

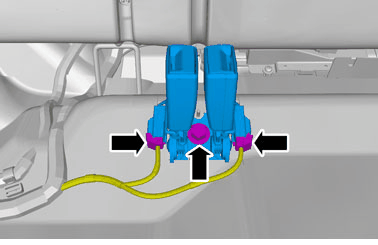

GLL173963Courtesy of VOLVO CARS CORPORATION

Torque:  Buckle safety belt to body, 40Nm
