Front Safety Belt Buckle [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove front seat, refer to: FRONT SEAT

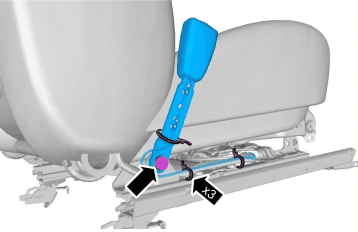

GLL155320Courtesy of VOLVO CARS CORPORATION

Torque:  Buckle safety belt to seat, 45Nm

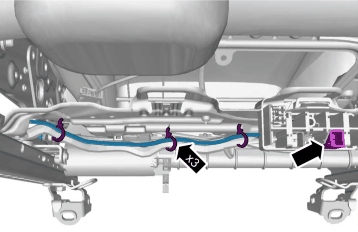

GLL155321Courtesy of VOLVO CARS CORPORATION
