Driver's Airbag [2016-2018]: Installation

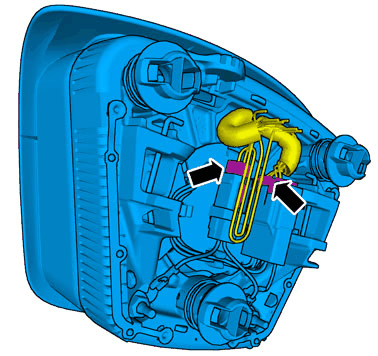

GLL170091Courtesy of VOLVO CARS CORPORATION

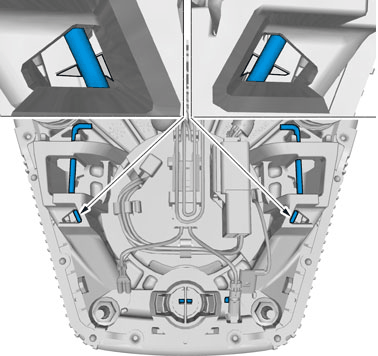

GLL170801Courtesy of VOLVO CARS CORPORATION
WARNING:

Make sure that the spring is correctly located in the lower spring seat.

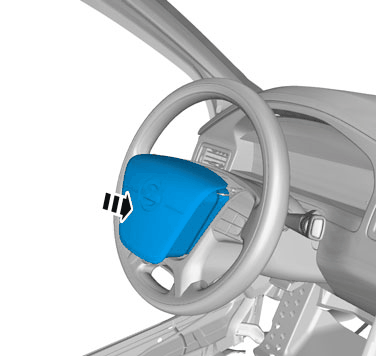

GLL170942Courtesy of VOLVO CARS CORPORATION
WARNING:

Make sure that the component has locked properly in position by pulling it towards you.

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Perform supplemental restraint system (SRS), post check, refer to: SUPPLEMENTARY RESTRAINT SYSTEM
