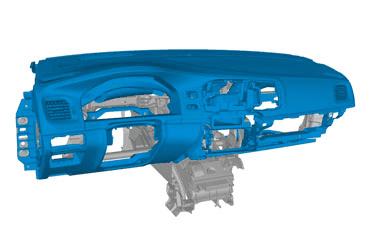

Dashboard [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Remove panel steering column, refer to: PANEL STEERING COLUMN

Remove steering wheel, refer to: STEERING WHEEL

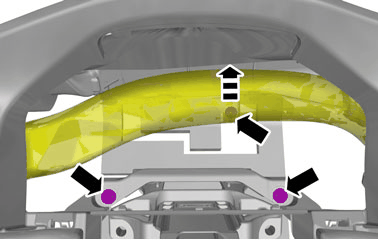

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the clockspring pins are not bent or damaged.

CAUTION:

Make sure that the clockspring rotor does not rotate.

Remove steering wheel lever right, refer to: CONTROL STALK, RIGHT

Remove steering wheel lever left, refer to: CONTROL STALK, LEFT

Remove the combined instrument panel, refer to: COMBINED INSTRUMENT PANEL

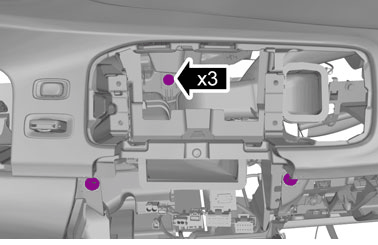

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the parking brake rotary switch, refer to: ROTARY SWITCH, PARKING BRAKE

Loosen Diagnostic socket OBD II, refer to: DIAGNOSTIC SOCKET OBD 2

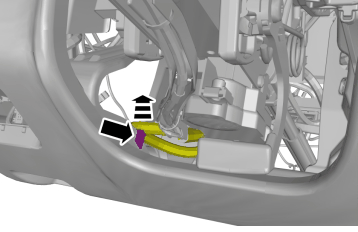

Courtesy of VOLVO CARS CORPORATION

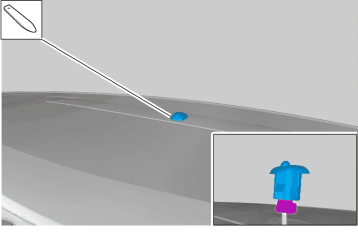

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

Information and Entertainment Display, refer to: INFORMATION AND ENTERTAINMENT DISPLAY
General audio player module, refer to: GENERAL AUDIO PLAYER MODULE
Start Button, refer to: START BUTTON
Antenna Unit SCU, refer to: IGNITION ANTENNA UNIT

Remove floor console, refer to: FLOOR CONSOLE

Remove glove compartment, refer to: GLOVE COMPARTMENT

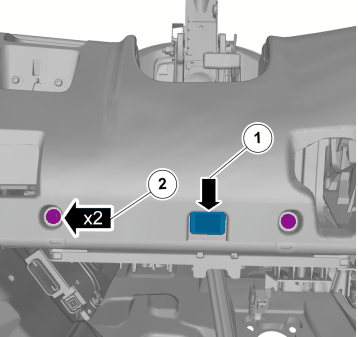

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove panel A-pillar, refer to: A-PILLAR TRIM PANEL

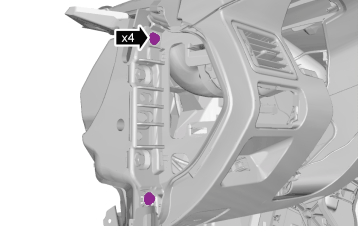

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

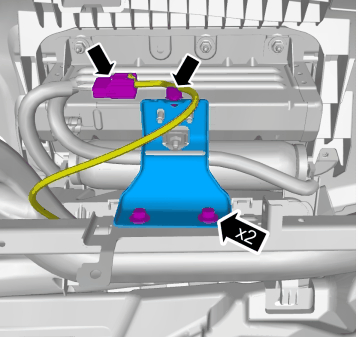

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION
