Airbag, Passenger Side [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING
WARNING:
Take extra care when handling supplemental restraint system (SRS) components.
See the safety information regarding pyrotechnic systems, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS
Follow the instructions about positioning safety components, refer to: POSITIONING SAFETY LABELS
Remove glove compartment, refer to: GLOVE COMPARTMENT

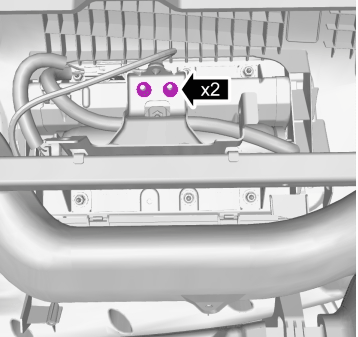

Torque: M6, 10Nm
Torque: Airbag to cross member, 6Nm

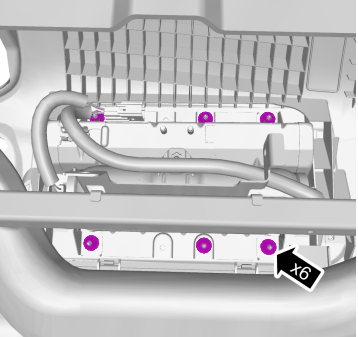

Torque: M6, 10Nm
