Air Bag, Front Seat [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING
Follow instruction for handling of non-deployed pyrotechnical part, refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART
Follow instructions about safety information pyrotechnical system, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS
Follow the instructions about positioning safety components, refer to: POSITIONING SAFETY LABELS

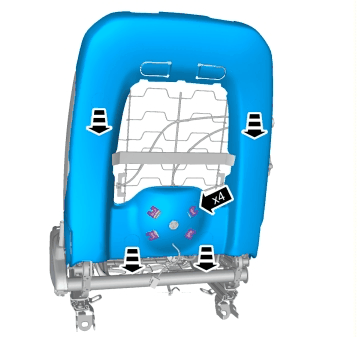

Remove the upholstery, refer to: FRONT SEAT BACKREST

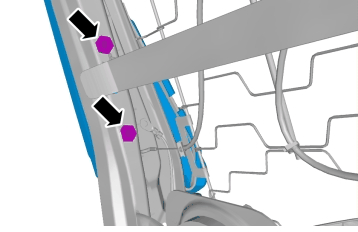

Torque: M6, 10Nm
Torque: Air bag to seat (SIPS), 7Nm

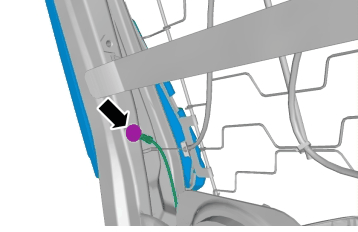

Perform connector ignition cable, refer to: IGNITER WIRE CONNECTOR
