Air Bag Supplemental Restraint System [2016-2018]: Removal

Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

Remove center console, refer to: CENTER CONSOLE

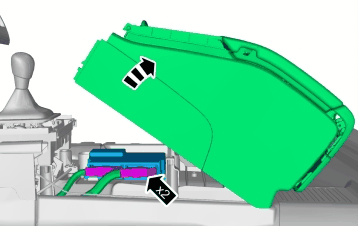

Disconnect the connector, refer to: POWER SOCKET 12V

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

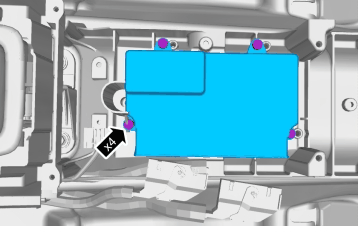

Torque:  M6, 10Nm
