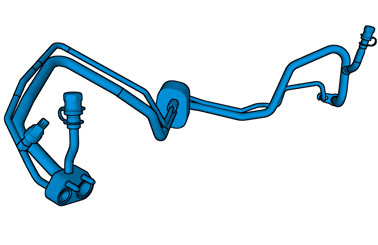

Thermostatic Expansion Valve To Connector Block Line [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the plenum cover, refer to: PLENUM COVER

Drain the refrigerant, refer to: REFRIGERANT, DRAINING

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

VEHICLES WITH SUPPORT BATTERY

Courtesy of VOLVO CARS CORPORATION

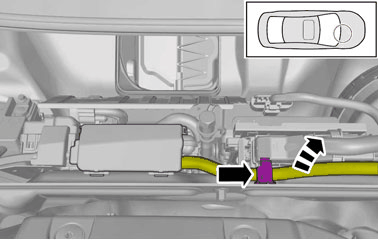

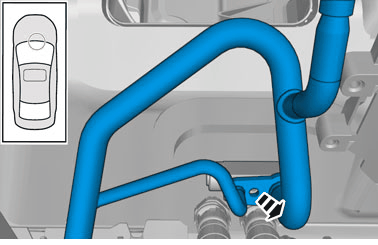

Remove the hose.

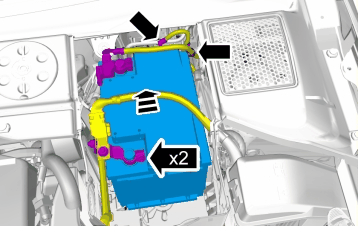

Loosen the screws.

Torque: Battery cable for battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

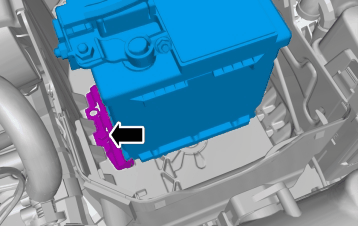

Remove the nut.

Remove the fastener.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque: M8, 24Nm

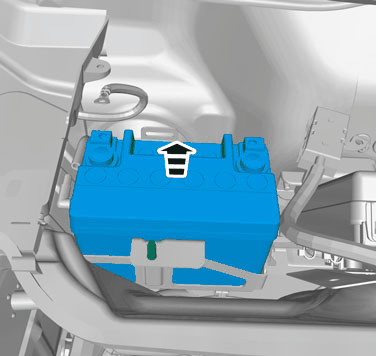

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

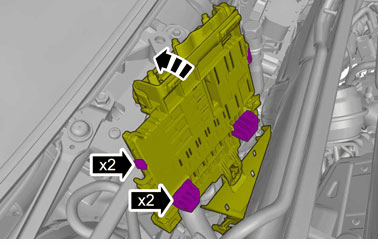

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

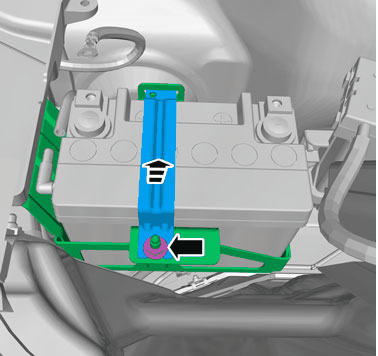

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

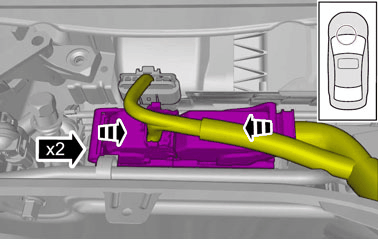

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Fold marked part aside.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

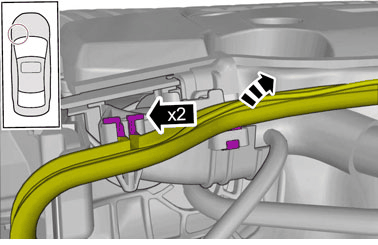

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the hose.

Loosen the screws.

Torque: Battery cable for battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the fastener.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

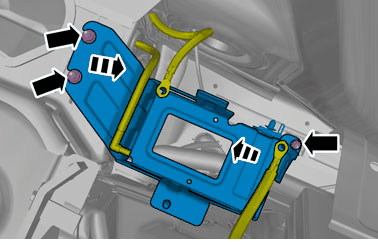

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.

Release the lock.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

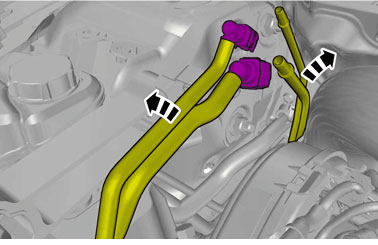

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

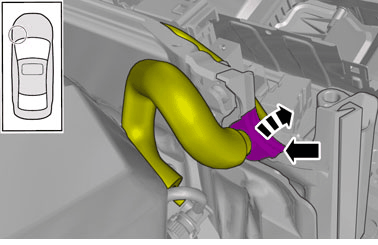

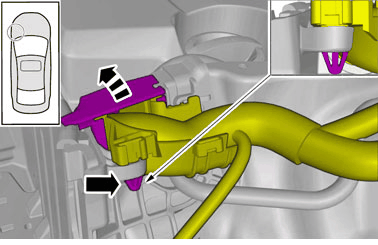

Loosen the clip.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

Fold marked part aside.

See information about safety information fuel system, refer to: SAFETY INFORMATION FUEL SYSTEM

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

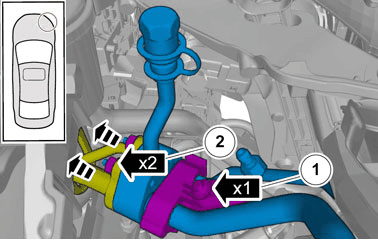

Release the lock.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

Fold marked part aside.

Remove the secondary bulkhead panel RH, refer to: SECONDARY BULKHEAD PANEL RH

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

Remove the screws.

Remove the nuts.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

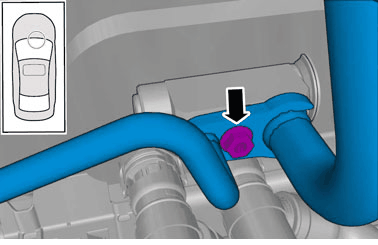

Remove the nut.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Courtesy of VOLVO CARS CORPORATION

Remove the clip.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

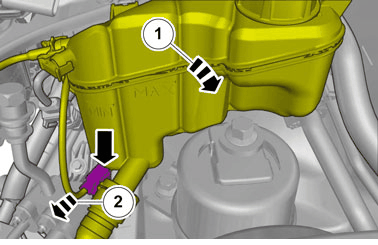

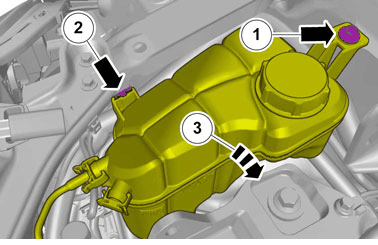

Remove the screw.

Torque: Expansion tank to body frame, 5.5Nm

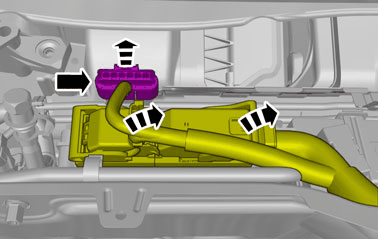

Release the lock.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

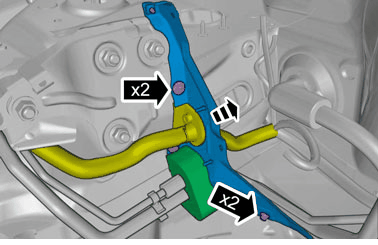

Remove the screws.

Torque: Upper torque rod to spring strut turret, 110Nm
Torque: Upper torque rod to engine mount bracket, 110Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

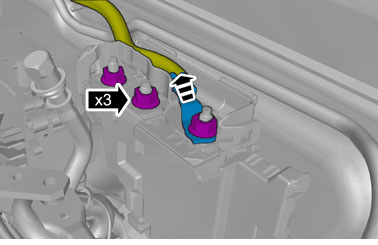

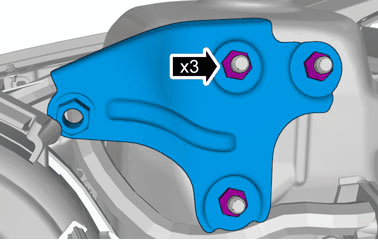

Remove the nuts.

Torque: M12, 80Nm

Remove the marked part.

Remove A/C pressure sensor, refer to: A/C PRESSURE SENSOR

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Remove the screw.

Remove the nuts.

Torque: M5, 5Nm
Torque: Refrigerant pipe to junction block, 16Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

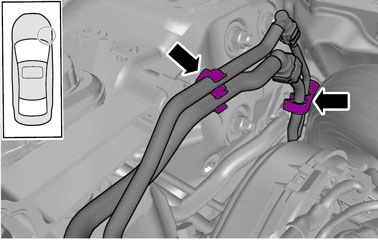

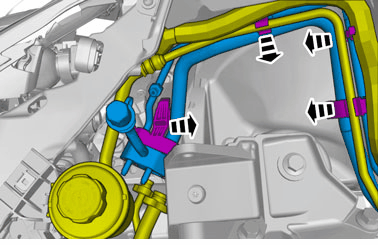

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

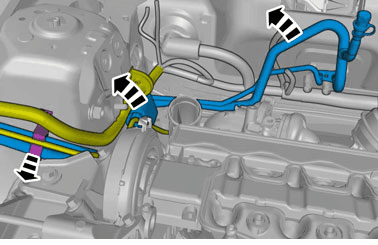

Loosen the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
