Temperature Control Damper Motor, Right [2016-2018]: Removal

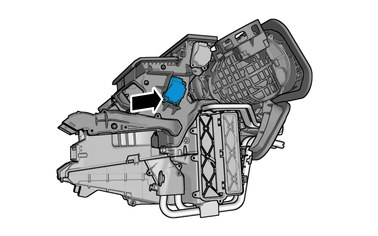

GLL1026866

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Remove glove compartment, refer to: GLOVE COMPARTMENT

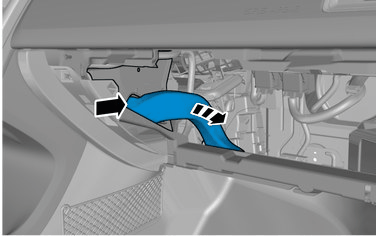

GLL1005776

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Remove the marked part.

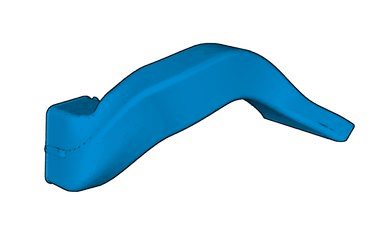

GLL1027183

Courtesy of VOLVO CARS CORPORATION

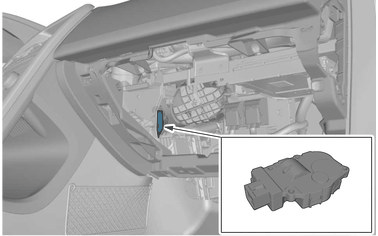

GLL1040012

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

VEHICLES EARLY VERSION

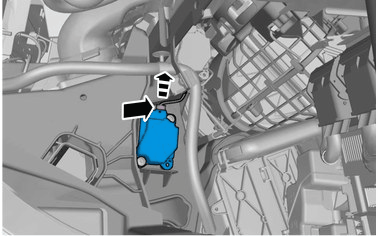

GLL1013293

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

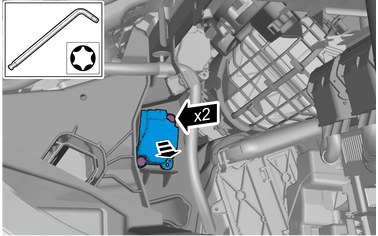

GLL1007275

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Remove the marked part.

GLL1012935

Courtesy of VOLVO CARS CORPORATION

VEHICLES LATE VERSION

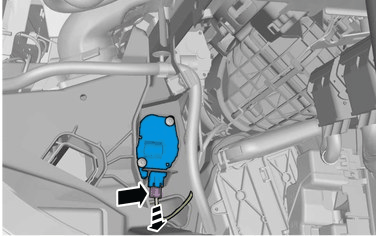

GLL1035201

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

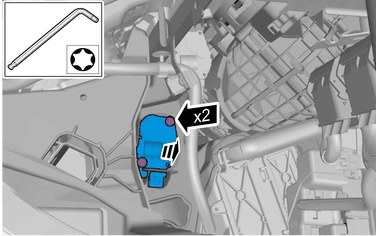

GLL1011910

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Remove the marked part.

GLL1008157

Courtesy of VOLVO CARS CORPORATION
