Removal And Installation

REMOVAL

Remove ac-compressor, refer to: AC COMPRESSOR

CAUTION:

To prevent moisture or dirt from entering the system, the protective plugs must always be installed immediately after disassembly.

Courtesy of VOLVO CARS CORPORATION

Install the marked components.

Install the nuts

CLEANING

Courtesy of VOLVO CARS CORPORATION

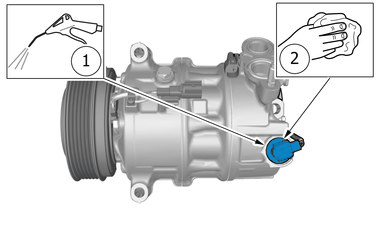

Clean the surface.

REMOVAL

Courtesy of VOLVO CARS CORPORATION

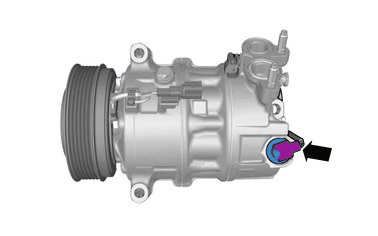

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Use: Circlip pliers, internal

Release the lock.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

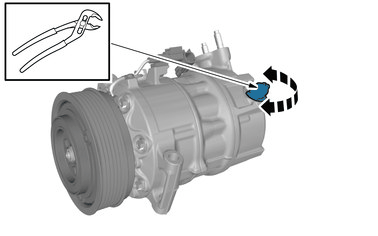

Use: Pipe wrench

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

DRAINING

Courtesy of VOLVO CARS CORPORATION

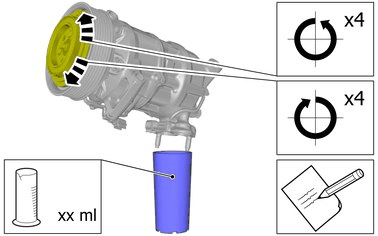

Remove the nuts.

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Measure and note the amount of compressor oil.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to use liberal amounts of oil on the O-rings before installation.

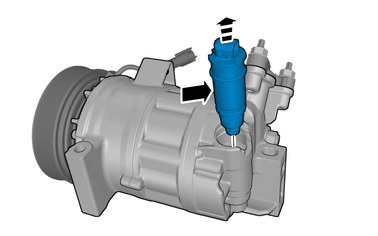

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

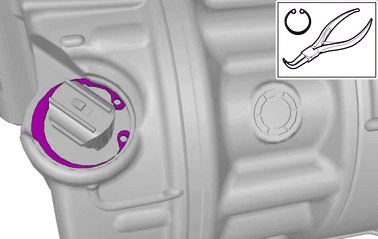

Install the catch.

Use: Circlip pliers, internal

Courtesy of VOLVO CARS CORPORATION

Connect the connector.

ADJUSTMENT OF OIL QUANTITY

CAUTION:

Ensure that the measured amount of compressor oil is refilled with fresh oil.

See information about refrigerant and oil grade, refer to: REFRIGERANT AND OIL GRADE

Follow the instructions about A/C Compressor oil, refer to: A/C COMPRESSOR OIL

INSTALLATION

Install the A/C compressor, refer to: AC COMPRESSOR
