Solenoid, "SANDEN"- Compressor [2016, B5254T12]: Removal

VEHICLES WITH "SANDEN" A/C COMPRESSOR

Remove ac-compressor, refer to: AC COMPRESSOR

VEHICLES WITH 5-CYL ENGINES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

To prevent moisture or dirt from entering the system, the protective plugs must always be installed immediately after disassembly.

Disconnect the connector.

VEHICLES WITH 6-CYL ENGINE

Courtesy of VOLVO CARS CORPORATION

CAUTION:

To prevent moisture or dirt from entering the system, the protective plugs must always be installed immediately after disassembly.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Wear safety goggles and protective gloves.

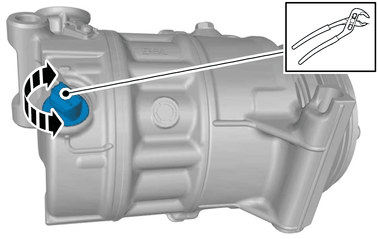

Release the lock.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

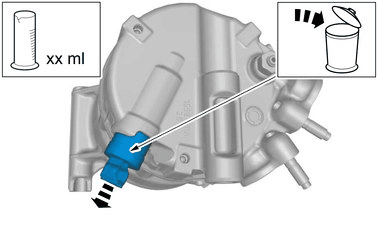

Measure and note the amount of compressor oil.

Courtesy of VOLVO CARS CORPORATION

NOTE:

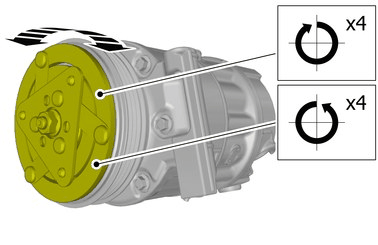

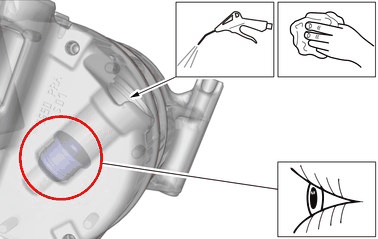

AC compressors without a drain plug are drained via the delivery and suction side openings. Rotate the magnetic clutch 4-5 turns and angle the compressor with the openings downwards.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

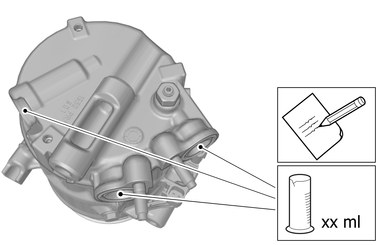

Measure and note the amount of compressor oil.

Courtesy of VOLVO CARS CORPORATION

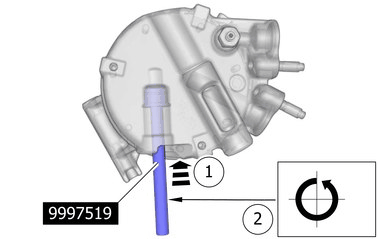

Special Tool: 999 7519

Courtesy of VOLVO CARS CORPORATION

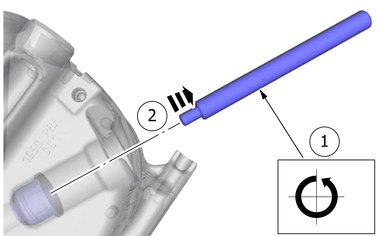

Rotation arrows show that you should turn the part to install or remove it.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the placing of the tool.

Courtesy of VOLVO CARS CORPORATION

WARNING:

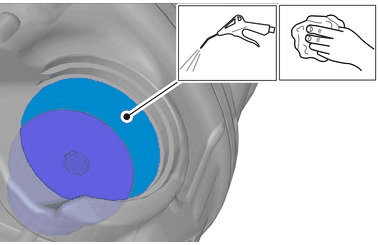

Make sure that the mating faces are clean and free of corrosion and foreign material.
