Refrigerant Pipe Compressor To Condenser [2017-2018, B4204T11]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Drain the refrigerant, refer to: REFRIGERANT, DRAINING
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

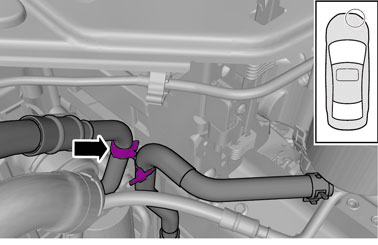

Loosen the clips.
Remove the marked part.
Loosen the clip.
CAUTION:
Make sure that all openings are sealed.

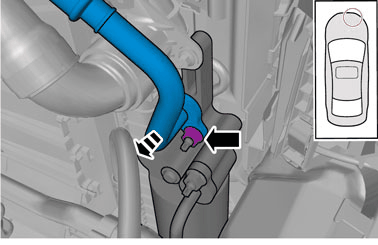

Remove the nut.
Torque: M8, 24Nm
CAUTION:
Note the routing of the lines and hoses.
CAUTION:
Make sure that all openings are sealed.

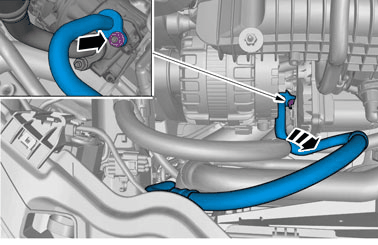

Remove the nut.
Torque: M8, 24Nm

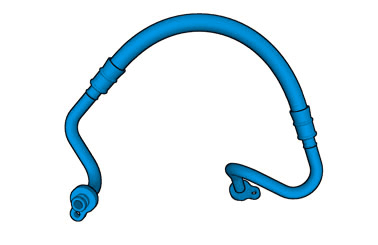

Remove the marked part.
