Refrigerant Pipe Compressor To Condenser [2016, B5254T12]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Drain the refrigerant, refer to: REFRIGERANT, DRAINING
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING
CAUTION:
Make sure that all openings are sealed.

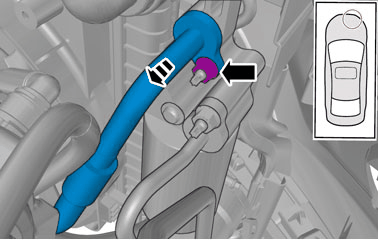

Remove the nut.
Torque: M8, 24Nm
See information about lifting points body JACKING POINTS BODY
Remove the screws.
Remove the clips.
Remove the marked part.
CAUTION:
Make sure that all openings are sealed.

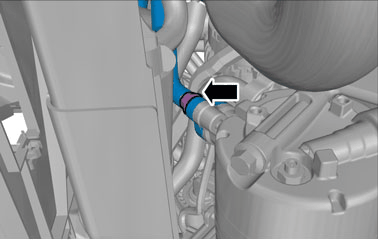

Remove the nut.
Torque: M8, 24Nm
Remove the marked part.
