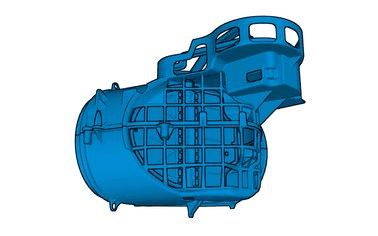

RECIRCULATION Damper Motor [2016-2018]: Preparation

Courtesy of VOLVO CARS CORPORATION

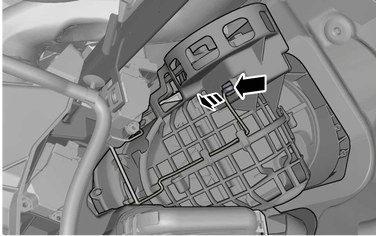

Recirculation activated

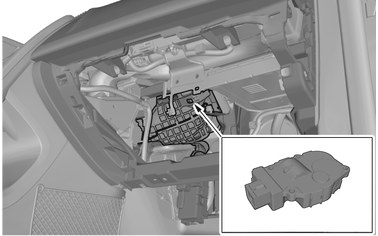

Remove control module relay box passenger compartment, refer to: CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

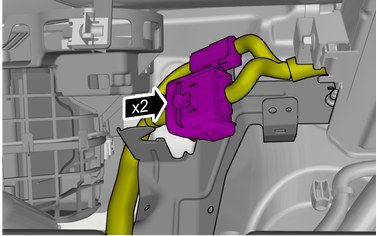

Disconnect the connectors.

Remove the cable harness clips.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

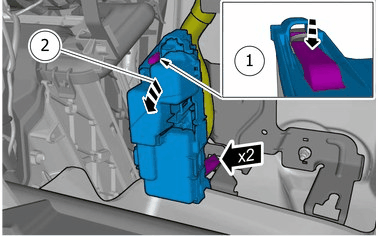

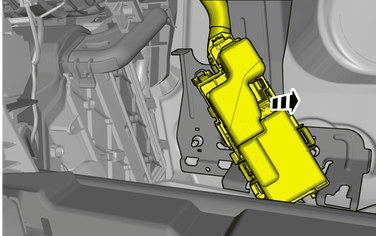

Release the lock.

Remove the part carefully

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

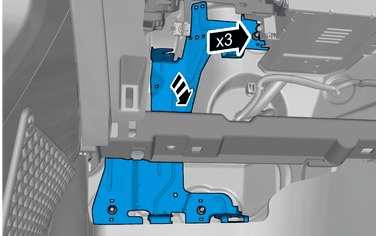

Remove the nuts.

Torque:  M8, 24Nm

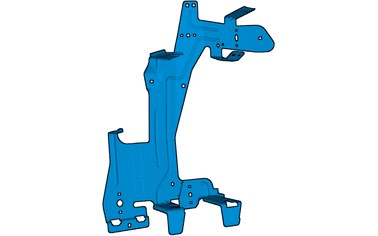

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH AIR QUALITY SENSOR

Remove air quality sensor AQS, refer to: AIR QUALITY SENSOR AQS

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

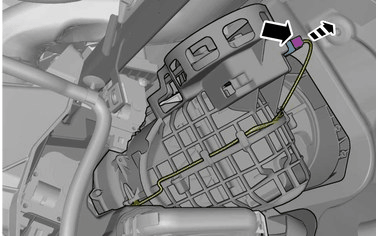

Disconnect the connector.

Loosen the wiring harness or move it to the side.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Loosen the wiring harness or move it to the side.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

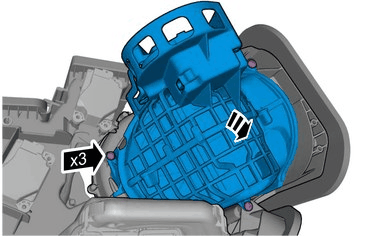

Remove the screws.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

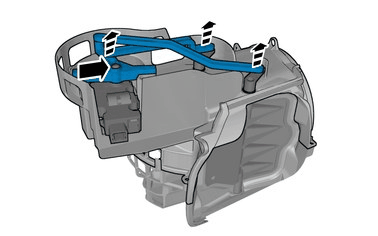

Loosen the clip.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

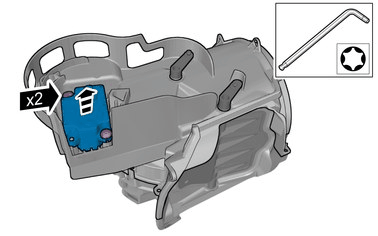

Remove the screws.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

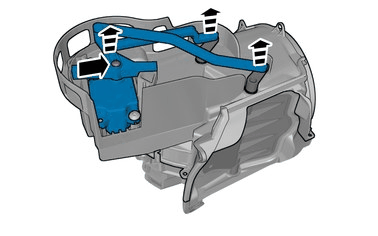

Loosen the clip.

Remove the part carefully

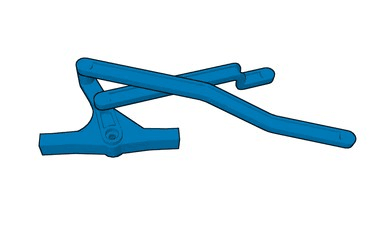

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

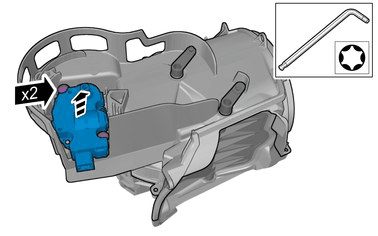

Remove the screws.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
