Heat EXCHANGER [2016-2018]: Removal

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove floor console, refer to: FLOOR CONSOLE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

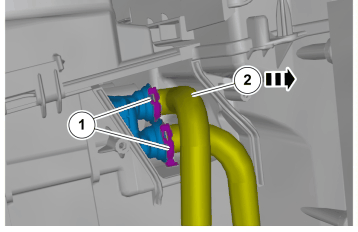

WARNING:

Be prepared to collect escaping fluid.

Courtesy of VOLVO CARS CORPORATION

NOTE:

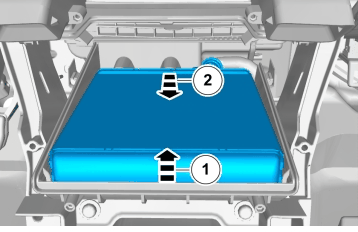

Note the position of the component before removal.
