Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Drain cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING
Orientation view
Remove Fuel operated auxiliary heater exhaust system, refer to: FUEL OPERATED AUXILIARY HEATER EXHAUST SYSTEM
See information about safety information fuel system, refer to: SAFETY INFORMATION FUEL SYSTEM
Be prepared to collect escaping fluid.
Release the lock.
Undo the hose from the connection.
Fold marked part aside.
Note the routing of the lines and hoses.

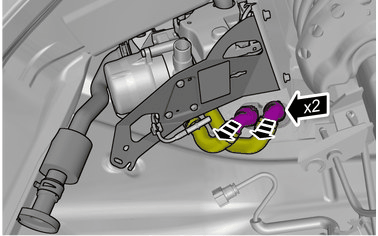

Release the locks.
Be prepared to collect escaping fluid.
Undo the hoses from the connections.
Remove the screws.
Torque: Combustion heater bracket, to Body, 8Nm
ALTERNATIVE 1
Note the routing of the lines and hoses.
Remove the part carefully
Loosen the clip.
Disconnect the connector.
Remove the marked part.
ALTERNATIVE 2
Note the routing of the lines and hoses.
Remove the part carefully
Loosen the clip.
Disconnect the connectors.
Remove the marked part.
ALL VEHICLES
TRANSFERRING COMPONENTS
Perform engine coolant heater, transferring components, refer to: COMBUSTION HEATER, TRANSFER OF COMPONENTS
INSTALLATION
Make sure that the quick release couplings turn properly into locked position.
Install the marked component.
To install, reverse the removal procedure.
Fill cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING
This step is only necessary when installing a new component.
Order and download the appropriate Volvo software.
