Fuel Operated Auxiliary Heater Water Pump [2017-2018, B4204T11]: Removal

See information about safety information cooling system, refer to: SAFETY INFORMATION COOLING SYSTEM

Remove the left-hand wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

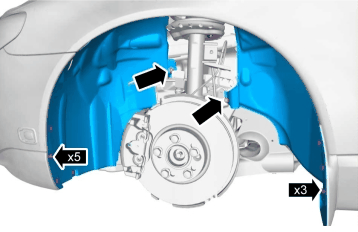

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the nuts.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

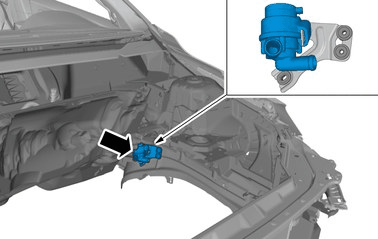

Orientation view

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Note the routing of the lines and hoses.

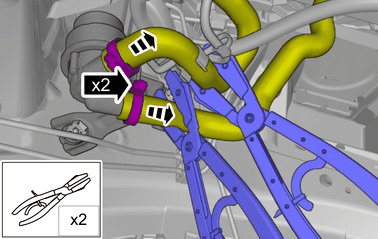

Loosen the hose clamps.

Undo the hoses from the connections.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

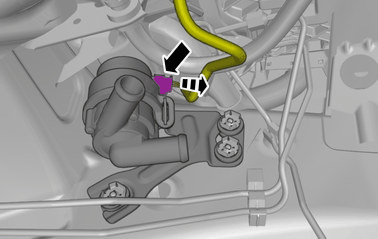

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

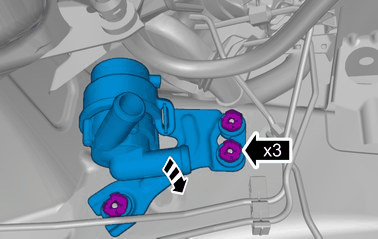

Remove the nuts.

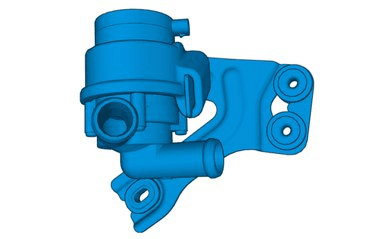

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
