Fuel Operated Auxiliary Heater Water Pump [2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information cooling system, refer to: SAFETY INFORMATION COOLING SYSTEM

Remove the engine control module (ECM), refer to: ENGINE CONTROL MODULE

Courtesy of VOLVO CARS CORPORATION

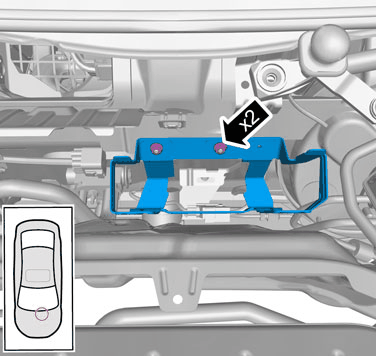

Remove the nuts.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

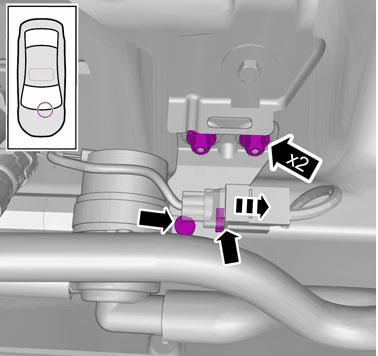

Remove the nuts.

Torque: M6, 10Nm

Remove the clip.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

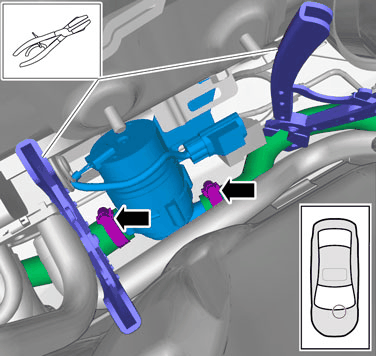

WARNING:

Be prepared to collect escaping fluid.

Loosen the hose clamps.

Undo the hoses from the connections.

Remove the marked part.
