Fuel Operated Auxiliary Heater Exhaust System [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

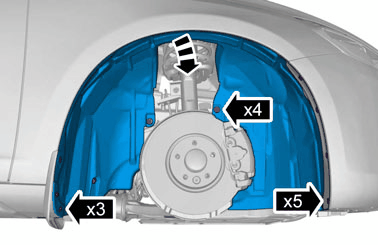

Remove right front wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Combustion heater bracket, to Body, 8Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: Exhaust pipe clamp, Combustion heater, 8Nm

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
