Fuel Operated Auxiliary Heater Blower Unit [2017-2018, B4204T11 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove fuel-powered auxiliary heater, refer to: FUEL OPERATED AUXILIARY HEATER

Courtesy of VOLVO CARS CORPORATION

NOTE:

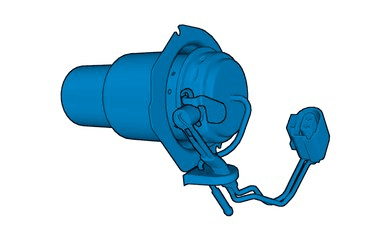

Orientation view

Courtesy of VOLVO CARS CORPORATION

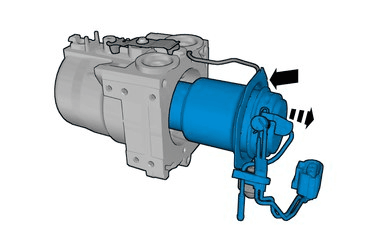

Release the locks.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the wire positions are correct.

Disconnect the connectors.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Burner unit to control module, 7Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that no part of the wiring harness is trapped.

NOTE:

Make sure that the seal is correctly located.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
