Defroster Damper Motor [2016-2018]: Removal

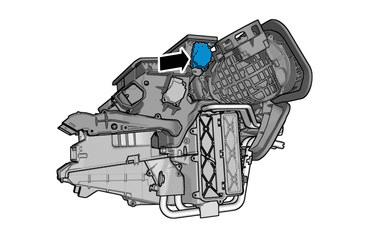

GLL1041107

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Remove glove compartment, refer to: GLOVE COMPARTMENT

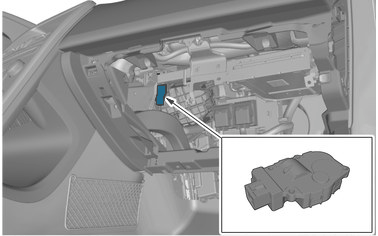

GLL1026169

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

VEHICLES EARLY VERSION

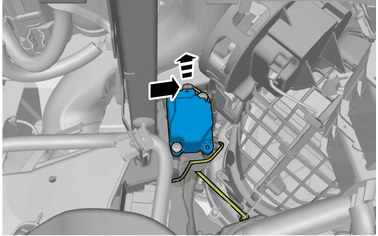

GLL1017603

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

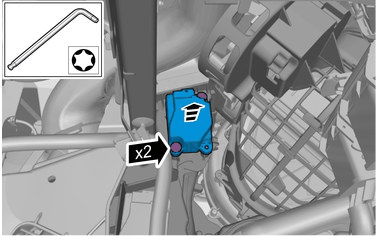

GLL1012974

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Remove the marked part.

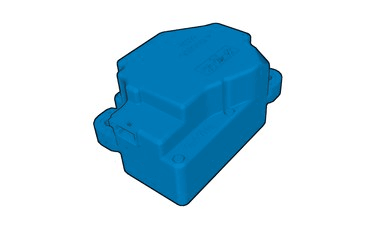

GLL1012935

Courtesy of VOLVO CARS CORPORATION

VEHICLES LATE VERSION

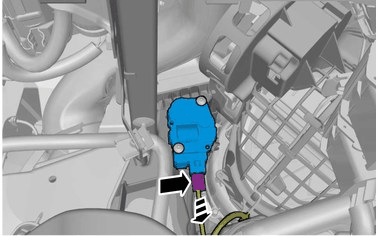

GLL1004462

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

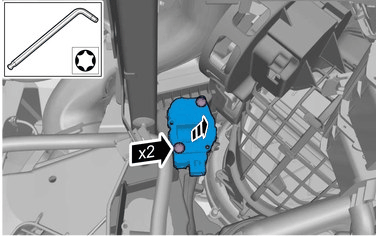

GLL1016688

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Remove the marked part.

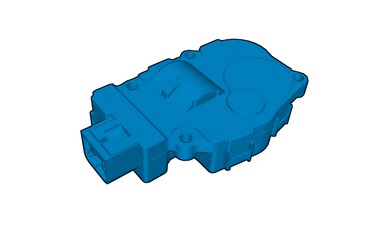

GLL1008157

Courtesy of VOLVO CARS CORPORATION
