Condenser To Connector Block Line [2017-2018, B4204T11 | 2016, B5254T12]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Drain the refrigerant, refer to: REFRIGERANT, DRAINING
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

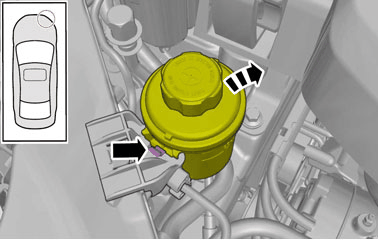

Remove the clip.
CAUTION:
Make sure that all openings are sealed.

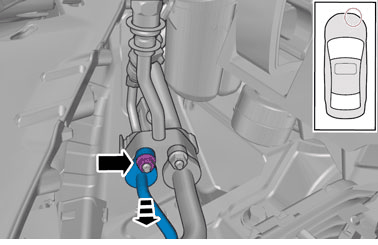

Remove the nut.
Torque: Refrigerant pipe to junction block, 16Nm
CAUTION:
Make sure that all openings are sealed.

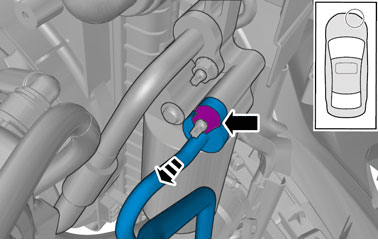

Remove the nut.
Torque: M8, 24Nm
