Climate Units [2016-2018]: Removal

Remove the wiper arm, refer to: WIPER ARM

Remove the wiper mechanism, windscreen, refer to: WIPER MECHANISM, WINDSHIELD

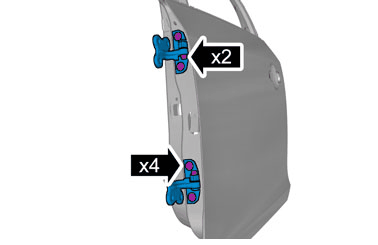

Courtesy of VOLVO CARS CORPORATION

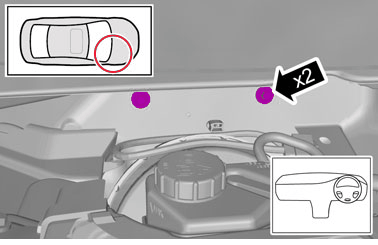

Remove the screws.

Torque:  M6, 10Nm

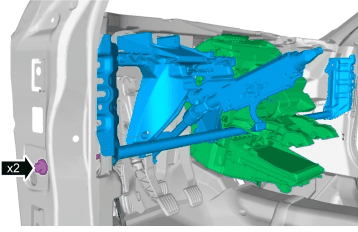

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M6, 10Nm

Drain the refrigerant, refer to: REFRIGERANT, DRAINING

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the expansion valve, refer to: EXPANSION VALVE

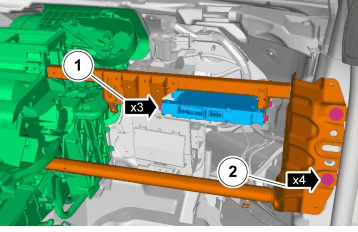

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the dashboard, refer to: DASHBOARD

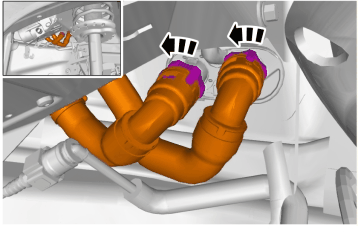

Courtesy of VOLVO CARS CORPORATION

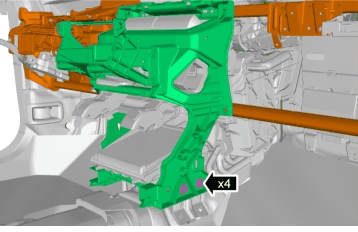

Fold marked part aside.

Remove the marked part.

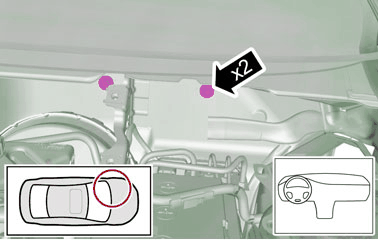

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

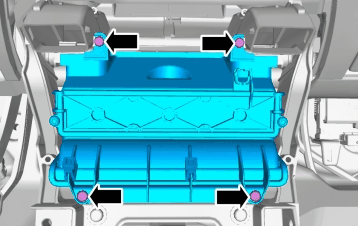

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M8, 24Nm

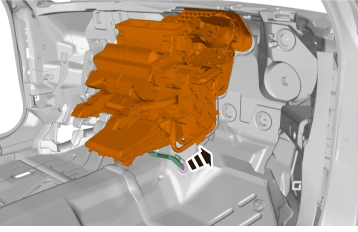

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M6, 10Nm

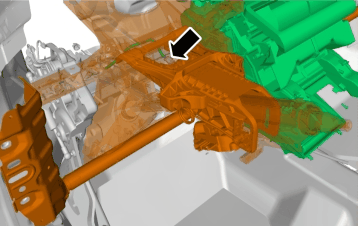

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  steering column to steering gear (steering shaft joint), 25Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

1. Torque:  M6, 10Nm
2. Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

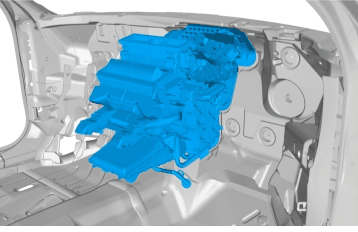

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
