Climate Control Module (CCM) [2016-2018]: Removal

Remove center console, refer to: CENTER CONSOLE

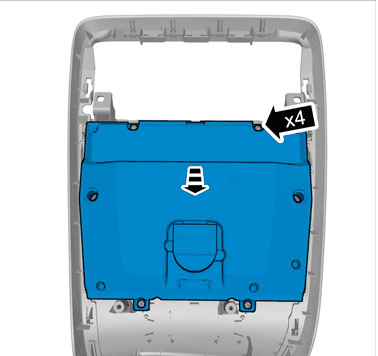

GLL174237Courtesy of VOLVO CARS CORPORATION
GLL174235Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care when handling the component.

NOTE:

This step is only necessary if the original component is to be reused.
