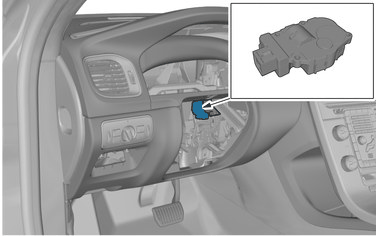

Air Distribution Damper Motor [2016-2018]: Removal

Courtesy of VOLVO CARS CORPORATION

Remove steering column, refer to: STEERING COLUMN

Remove the combined instrument panel, refer to: COMBINED INSTRUMENT PANEL

Courtesy of VOLVO CARS CORPORATION

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

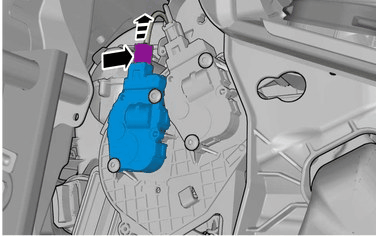

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

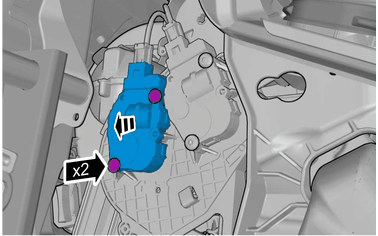

Remove the screws.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

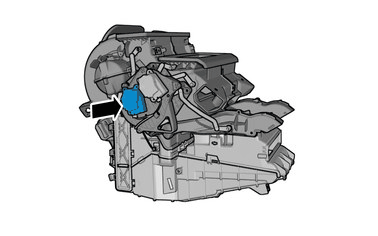

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

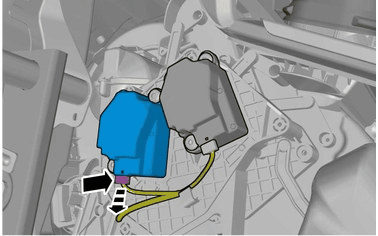

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

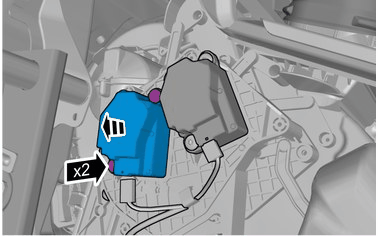

Remove the screws.

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
