Ac Receiver Drier [2017-2018, B4204T11 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain the refrigerant, refer to: REFRIGERANT, DRAINING

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

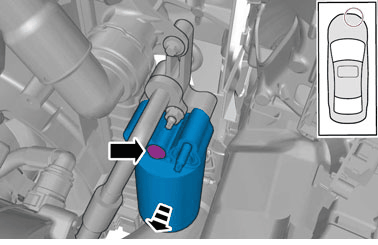

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Remove the nut.

Torque: M8, 24Nm

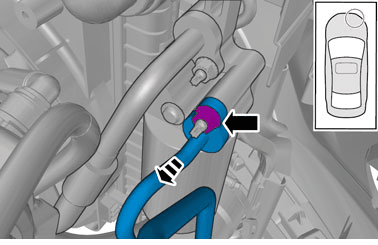

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Remove the screw.

Torque: M7, 17Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Be extra careful when removing or installing this component.
