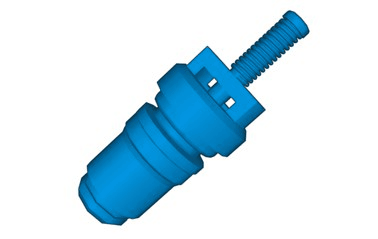

Ac Needle Valve [2017-2018]: Removal

Drain the refrigerant, refer to: REFRIGERANT, DRAINING

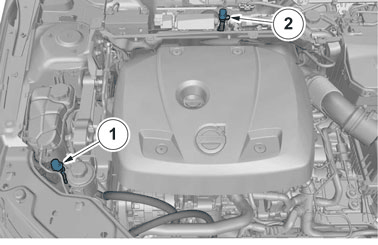

Courtesy of VOLVO CARS CORPORATION

1. Service valve high pressure
2. service valve low pressure

Courtesy of VOLVO CARS CORPORATION

Remove the marked detail/details.

1. Torque:  Valve cap (grey), to Service valve, 3Nm
2. Torque:  Valve cap (black), to Service valve, 6Nm

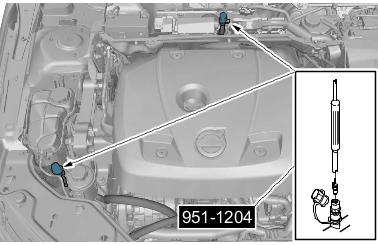

Courtesy of VOLVO CARS CORPORATION

Remove the marked detail/details.

Special Tool: 951 1204

Courtesy of VOLVO CARS CORPORATION
