Ac Electromagnetic Clutch [2017-2018, B4204T11]: Removal

Remove ac-compressor, refer to: AC COMPRESSOR

GLL1038203Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that all openings are sealed.

Remove the nut.

Special Tool: 999 7487

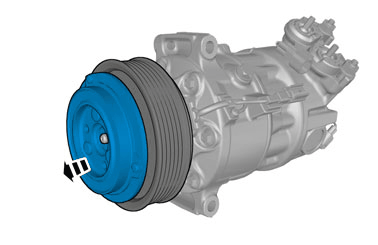

GLL1003435Courtesy of VOLVO CARS CORPORATION
CAUTION:

Be extra careful when removing or installing this component.

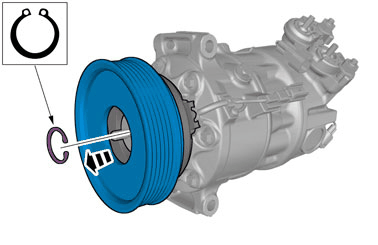

GLL1004998Courtesy of VOLVO CARS CORPORATION
CAUTION:

Be extra careful when removing or installing this component.

Use:  Circlip pliers, external

GLL1005887Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the screw.

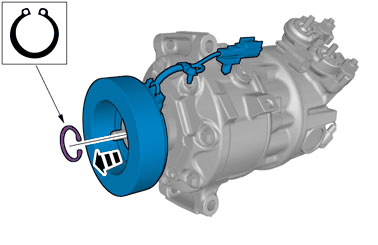

GLL1018040Courtesy of VOLVO CARS CORPORATION
CAUTION:

Be extra careful when removing or installing this component.

Use:  Circlip pliers, external

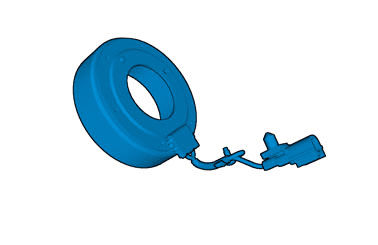

GLL1040686Courtesy of VOLVO CARS CORPORATION
