Ac Electromagnetic Clutch [2017-2018, B4204T11]: Installation

Courtesy of VOLVO CARS CORPORATION

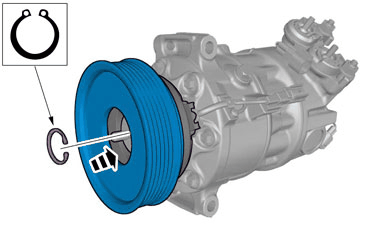

Use:  Circlip pliers, external

Courtesy of VOLVO CARS CORPORATION

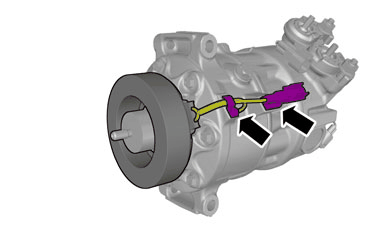

Connect the connector.

Install the screw.

Courtesy of VOLVO CARS CORPORATION

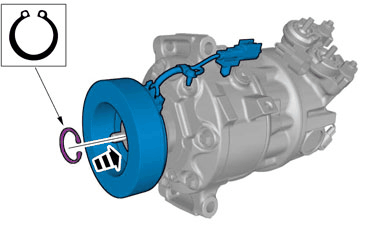

Use:  Circlip pliers, external

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

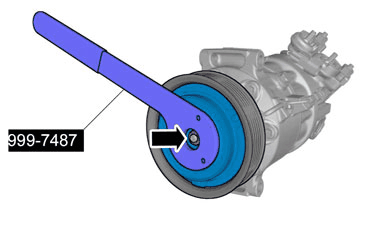

Install the nut.

Torque:  Air Conditioning Clutch to Air Conditioning (A/C) Compressor, 21Nm

Special Tool: 999 7487

Perform A/C compressor solenoid clutch, adjustment, refer to: A/C COMPRESSOR SOLENOID CLUTCH, ADJUSTMENT

Install the A/C compressor, refer to: AC COMPRESSOR
