Ac Electromagnetic Clutch [2016, B5254T12]: Removal

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

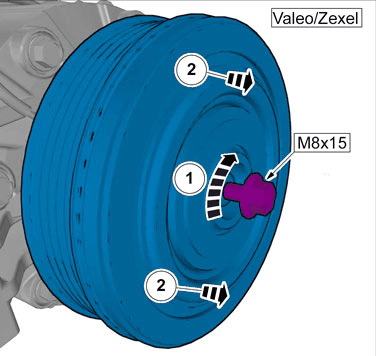

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Special Tool: 999 7427

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Torque:  M7, 17Nm

Special Tool: 999 7395

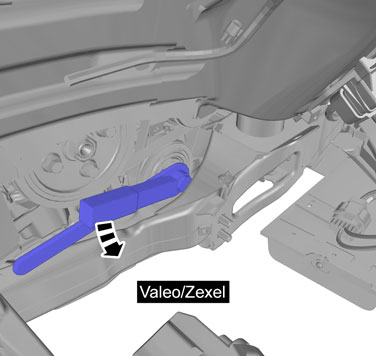

Courtesy of VOLVO CARS CORPORATION

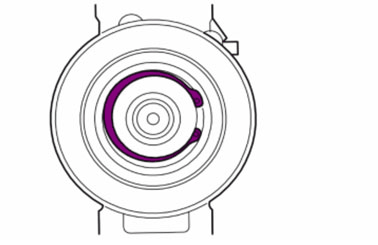

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove ac-compressor, refer to: AC COMPRESSOR

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
