Ac Condenser [2017-2018, B4204T11 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain the refrigerant, refer to: REFRIGERANT, DRAINING

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Remove the nut.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Remove the nut.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Remove the screws.

Torque: M6, 10Nm
Torque: M7, 17Nm

See information about lifting points body, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Remove the marked part.

Remove casing bumper front, refer to: COVER BUMPER FRONT

VEHICLES WITH PROXIMITY WARNING RADAR UNIT

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

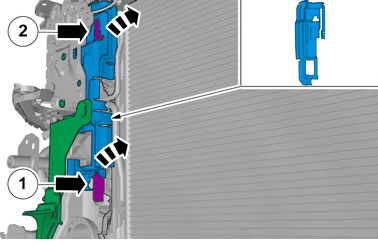

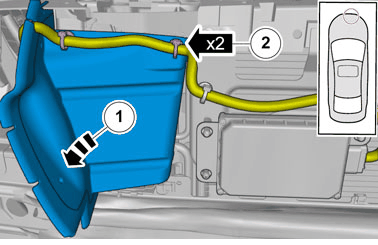

Remove the cable harness clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

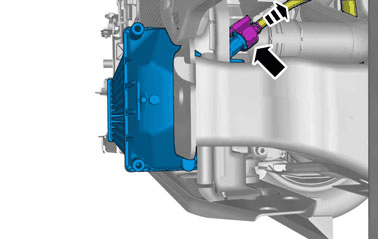

Disconnect the connector.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

NOTE:

Make sure that the bolts are not tightened until the hood is closed.

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

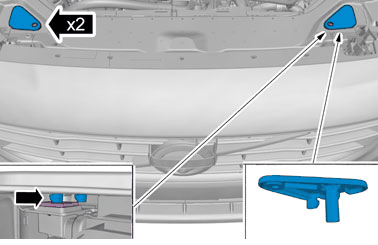

Remove the clip.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

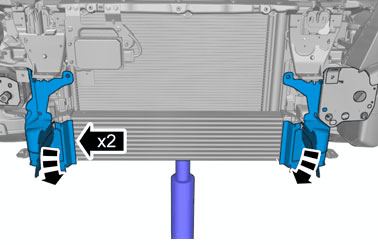

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Remove the marked detail/details.

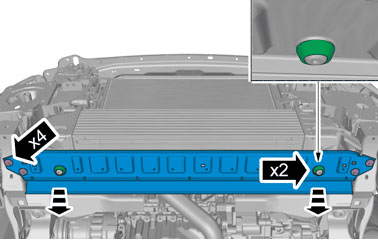

Remove front bumper cross member, refer to: CROSSMEMBER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

NOTE:

Note the position of the component before removal.

Courtesy of VOLVO CARS CORPORATION

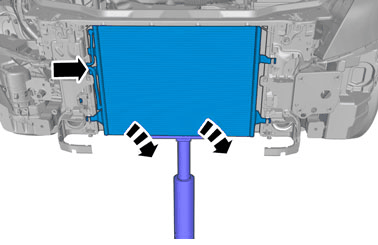

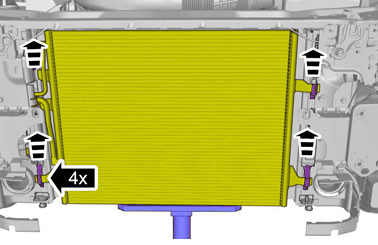

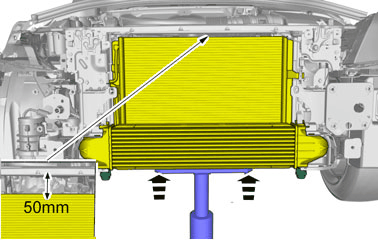

Use: Unit lift

Special Tool: 999 5972 and Special Tool: 998 5972

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

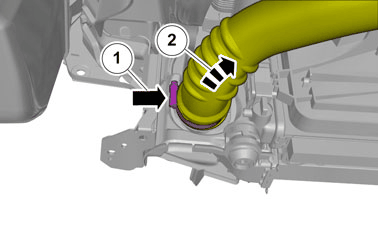

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

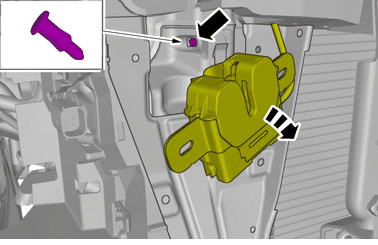

Release the lock.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Release the lock.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Release the lock.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Remove the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Be extra careful when removing or installing this component.

Courtesy of VOLVO CARS CORPORATION
