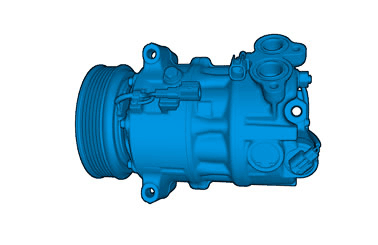

Ac Compressor [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain the refrigerant, refer to: REFRIGERANT, DRAINING

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

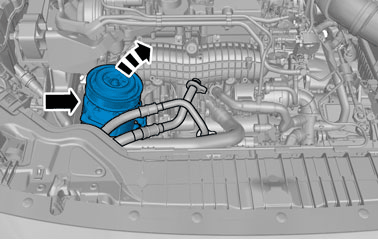

Loosen the clips.

Remove the marked part.

Remove the alternator, refer to: ALTERNATOR

Courtesy of VOLVO CARS CORPORATION

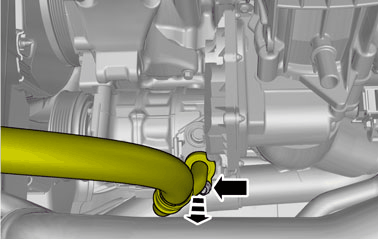

NOTE:

Orientation view

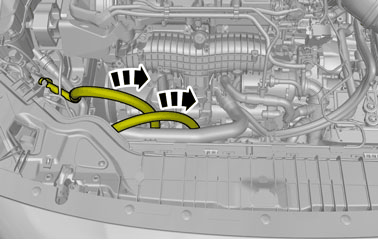

CAUTION:

Note the routing of the lines and hoses.

CAUTION:

Make sure that all openings are sealed.

Courtesy of VOLVO CARS CORPORATION

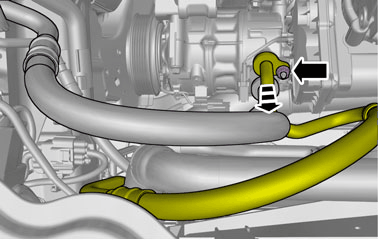

Remove the nut.

Torque: M8, 24Nm

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

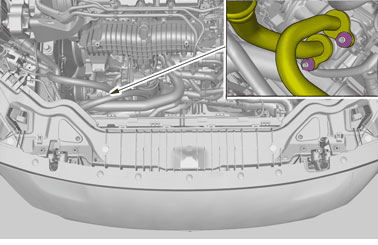

Remove the nut.

Torque: M8, 24Nm

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Be extra careful when removing or installing this component.
