Ac Compressor [2016, B5254T12]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Drain the refrigerant, refer to: REFRIGERANT, DRAINING
See information about lifting points body, refer to: JACKING POINTS BODY
Remove the following items:
- auxiliary drive belt, refer to: AUXILIARY DRIVE BELT
- receiver drier, refer to: RECEIVER DRIER

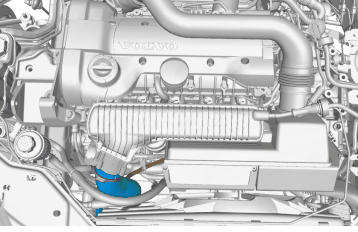

Loosen the hose clamp.
Remove the hose.
CAUTION:
Note the routing of the lines and hoses.
CAUTION:
Make sure that all openings are sealed.

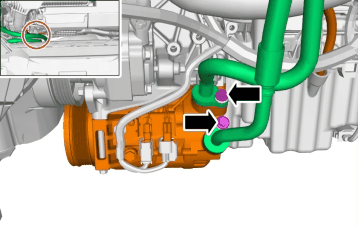

Remove the screws.
Torque: M8, 24Nm
Loosen the marked details.
Remove the screws.
Remove the clips.
Remove the marked part.

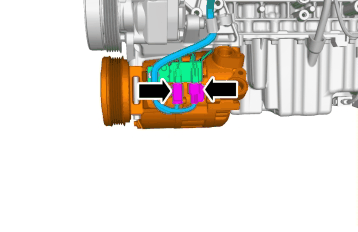

Disconnect the connectors.
Remove the screws.
Torque: M8, 24Nm
Remove the marked part.
