Refrigerant, Filling [2017-2018]: Installation

Courtesy of VOLVO CARS CORPORATION

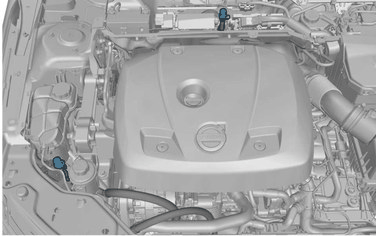

Install the marked component.

1. Torque:  Valve cap (grey), to Service valve, 3Nm
2. Torque:  Valve cap (black), to Service valve, 6Nm

Install plenum cover, refer to: PLENUM COVER
