Oil A/C Compressor, Draining/Refilling [2017-2018, B4204T11]: Drainage

Courtesy of VOLVO CARS CORPORATION

Install the marked components.

Courtesy of VOLVO CARS CORPORATION

Install the nuts

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque:  Drain plug, for A/C Compressor, 14.7Nm

Courtesy of VOLVO CARS CORPORATION

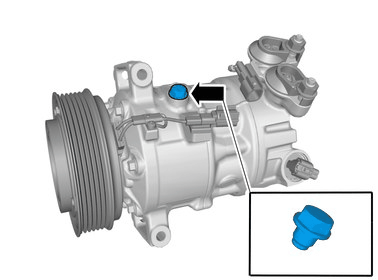

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque:  Drain plug, for A/C Compressor, 14.7Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION
