Adjustment Of Oil Quantity

Courtesy of VOLVO CARS CORPORATION

The following steps are performed on new component.

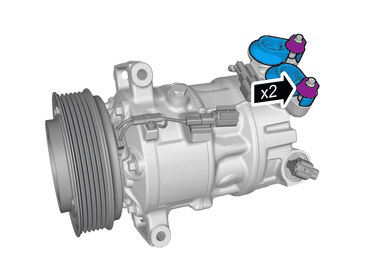

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

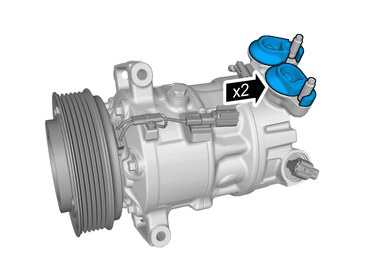

Remove the marked parts.

Follow the instructions for oil A/C compressor, draining/refilling, refer to: OIL A/C COMPRESSOR, DRAINING/REFILLING

Courtesy of VOLVO CARS CORPORATION

CAUTION:

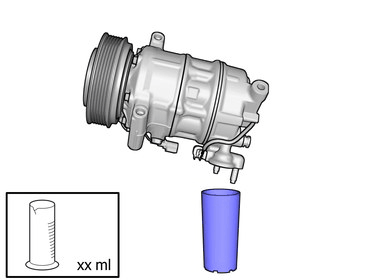

Drain the new A/C compressor on oil according to chart.
