Fuel Operated Auxiliary Heater, Checking [2017-2018, B4204T11 | 2016, B5254T12]: Removal

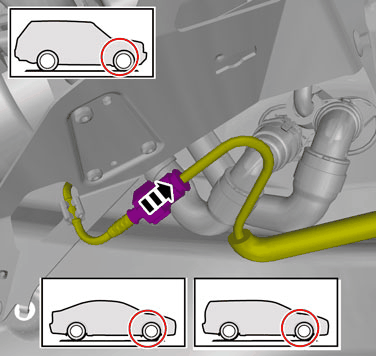

Remove the wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Follow instruction about safety information fuel system, refer to: SAFETY INFORMATION FUEL SYSTEM

Courtesy of VOLVO CARS CORPORATION

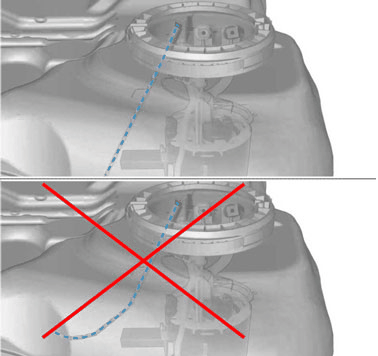

Ensure that the fuel quantity is approx. 10-15 liters, that is just above the point where the low fuel level indicator lamp goes out.

Run the Booster Heater.

If air bubbles are present when running the heater:

Run the Booster Heater.

If air bubbles are present when running the heater:

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7412  and Special Tool: 999 7413

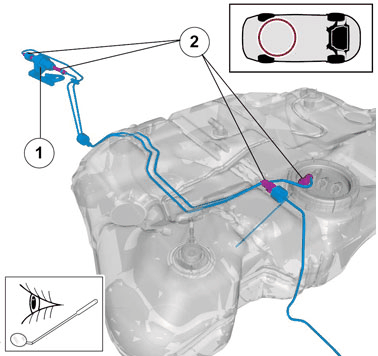

Check the connectors between suction pipe and fuel pump (2).

Check for any signs of leakage on the fuel line connections between the fuel tank and heater.

Run the Booster Heater.

If there are no air bubbles, the fuel line between the quick-release connectors must be replaced.

Install a new Booster Heater Fuel Pump (1) with Fuel Lines.

Courtesy of VOLVO CARS CORPORATION

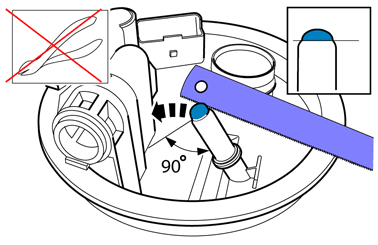

Check the surfaces for abrasion.

Courtesy of VOLVO CARS CORPORATION

If necessary

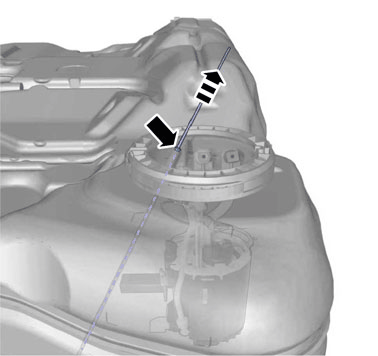

Remove fuel pump and level sensor unit, refer to: FUEL PUMP AND LEVEL SENSOR UNIT

Courtesy of VOLVO CARS CORPORATION

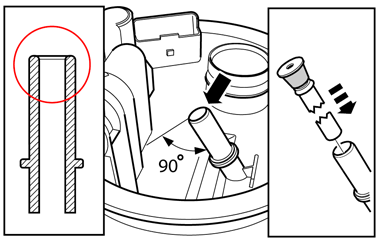

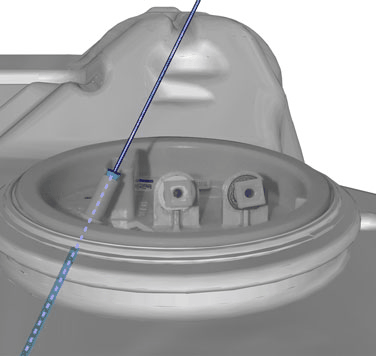

Install new pipe, secure position as illustrated.

Use:  Welding rod 1.5 mm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
