Evaporator, Climate Unit, Cleaning [2016-2018]: Cleaning

WARNING:

Wear safety goggles and protective gloves.

Courtesy of VOLVO CARS CORPORATION

Use: Cleaning agent, 31699201

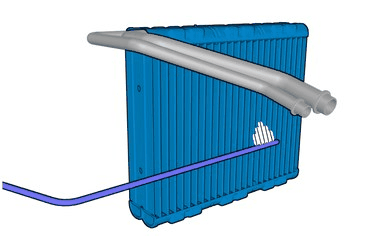

Clean the marked area.

Courtesy of VOLVO CARS CORPORATION

NOTE:

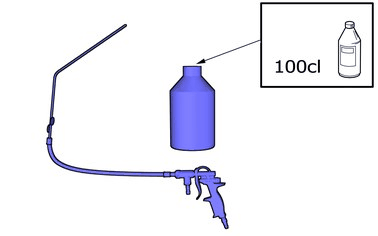

Use the whole content of the product when filling the reservoir.

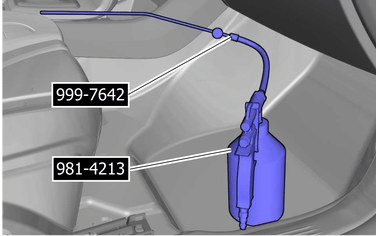

Use: Cleaning agent, 31699201

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

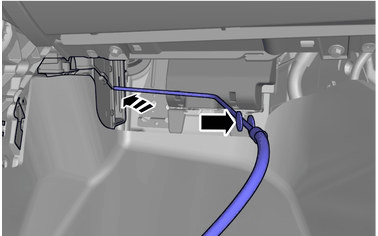

Hold the spray tool (thumb plate indicated) in such a way that the spray is perpendicular to the evaporator core.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Keep a distance between tool and evaporator core to avoid the risk of damaging the fins during cleaning.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Position suitable paper under the climate unit to collect any fluid that may run out.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

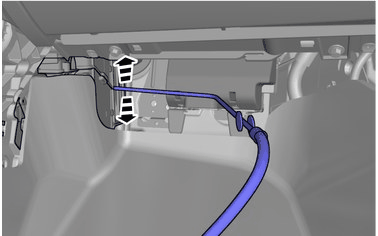

Clean the marked area.

Courtesy of VOLVO CARS CORPORATION

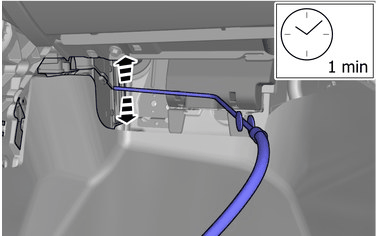

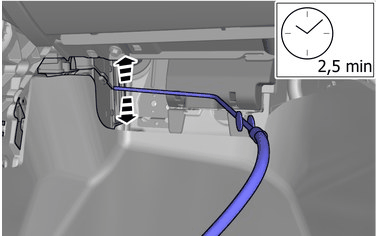

Clean according to time specified.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

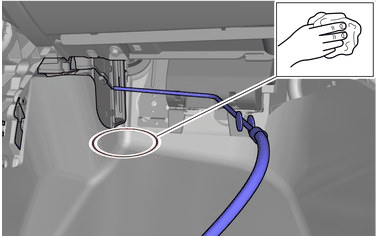

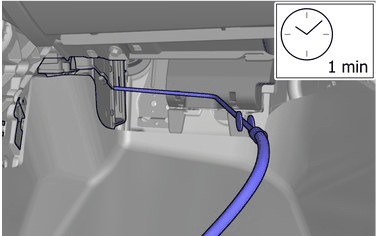

Wait for the fluid to be drained out of the climate unit's drain hose/hoses.

Wait the specified time

Courtesy of VOLVO CARS CORPORATION

Repeat the procedure until the contents of the reservoir are finished.

Courtesy of VOLVO CARS CORPORATION

HINT: Use the special tool to dry the evaporator.

Remove the Special Tool.
