Climate Control System, Check [2016-2018]: Activation
Start the engine.
 Courtesy of VOLVO CARS CORPORATION
|

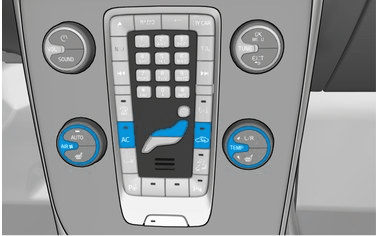

- Air Condition (A/C) activated
- Fan speed = 50%
- Temperature = maximum Cold
- Air distribution selector in position: Dash Vent Register
- Recirculation activated
 Courtesy of VOLVO CARS CORPORATION
|

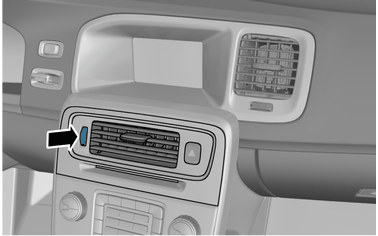

Dash Vent Register = Open position
 Courtesy of VOLVO CARS CORPORATION
|
NOTE:

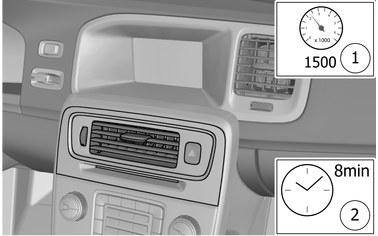

Ensure not to undercut the time specified in the image.
