Ac Pressure, Check [2017-2018, B4204T11]: Connecting

VEHICLES WITH REFRIGERANT TYPE R134A

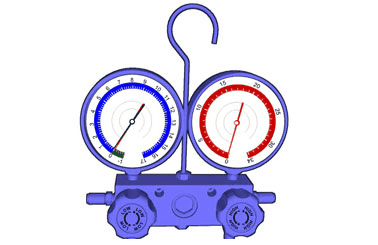

GLL175852Courtesy of VOLVO CARS CORPORATION
CAUTION:

Never mix different types of refrigerant or equipment intended for them.

Special Tool: 981 4092

VEHICLES WITH REFRIGERANT TYPE R123YF

GLL175852Courtesy of VOLVO CARS CORPORATION
CAUTION:

Never mix different types of refrigerant or equipment intended for them.

Special Tool: 981 4236

ALL VEHICLES

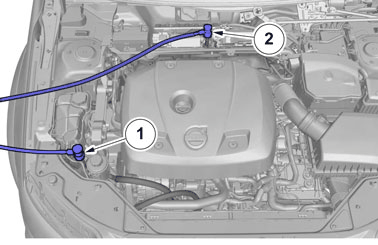

GLL1023230Courtesy of VOLVO CARS CORPORATION

Install the hoses.

  1. Service valve high pressure
  2. service valve low pressure

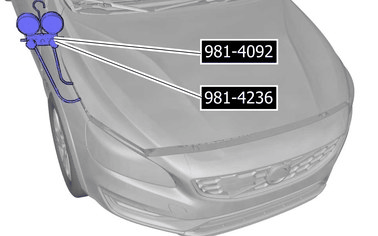

GLL1025162Courtesy of VOLVO CARS CORPORATION
CAUTION:

Close the hood carefully so as not to damage the hoses.

Special Tool: 981 4092   and Special Tool: 981 4236
